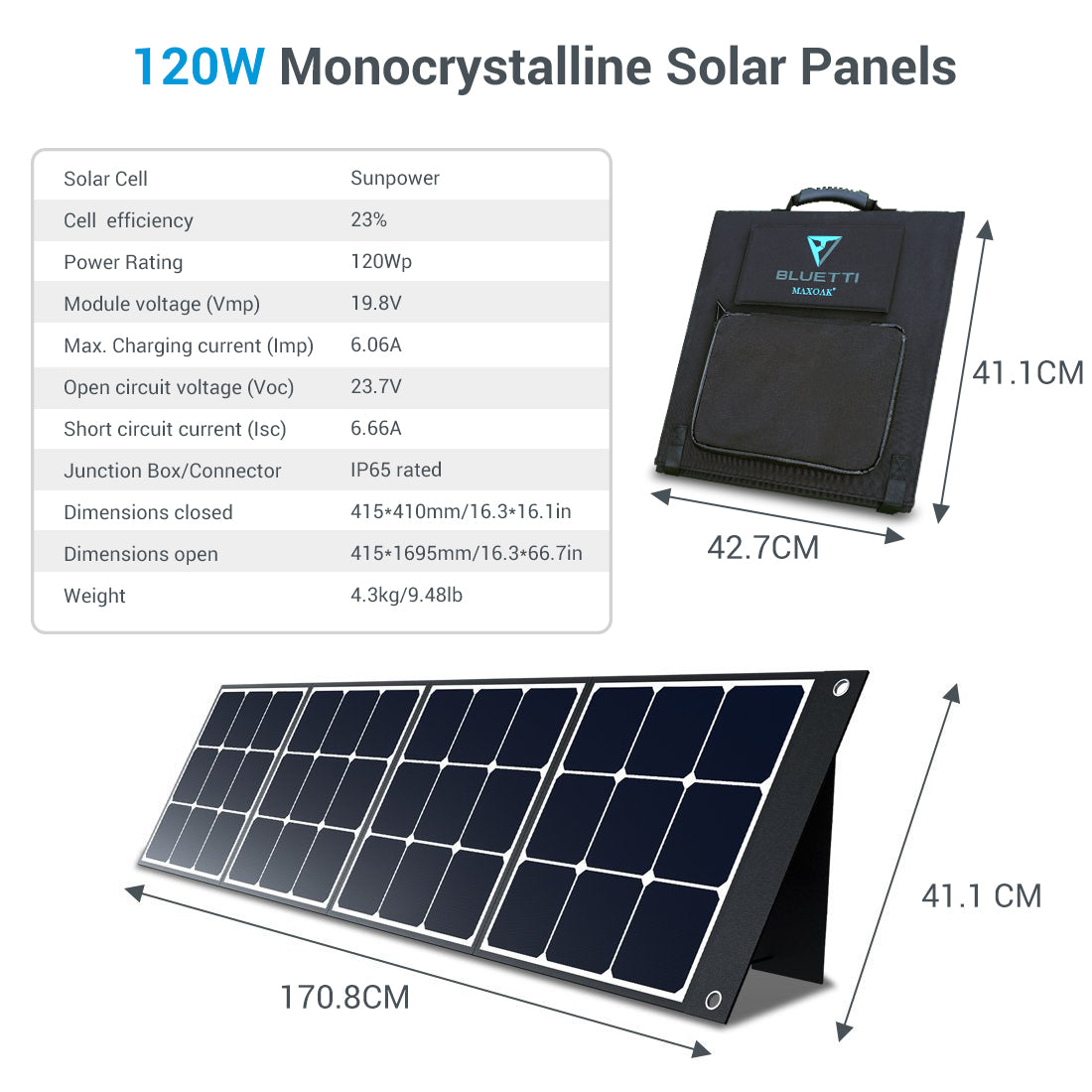

Maximum power(Pm) : 120W
-

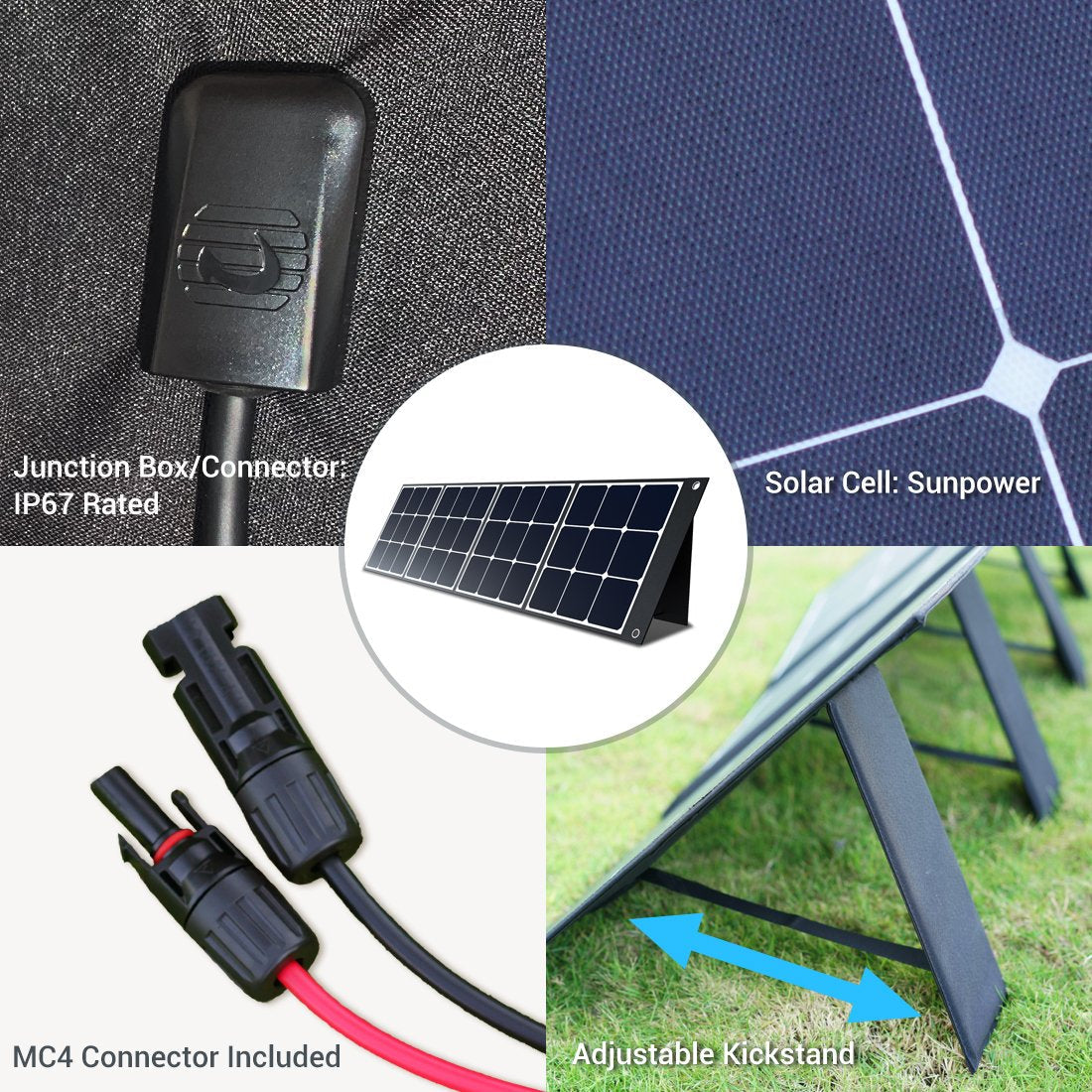

solar cell:sunpower
-
Voltage at max power(Vmp): 19.8V
-
Cell efficiency:Current at max power(Imp): 6.06A
-
Open circuit voltage(Voc): 23.7V
-
Short circuit current(Isc): 6.66A
-
Operating Temperature: (- 10℃－+65℃)
-
Maximum System Voltage: 300V
-
Standard Test Condtion: Irrandiance 1000W/㎡,
-
Module temperature 25℃,AM=1.5
-
Dimension(unfolded):41.5*169.5cm/16.3*66.7in
-
Dimension(folded):41.5*41cm/16.3*16.1in
-

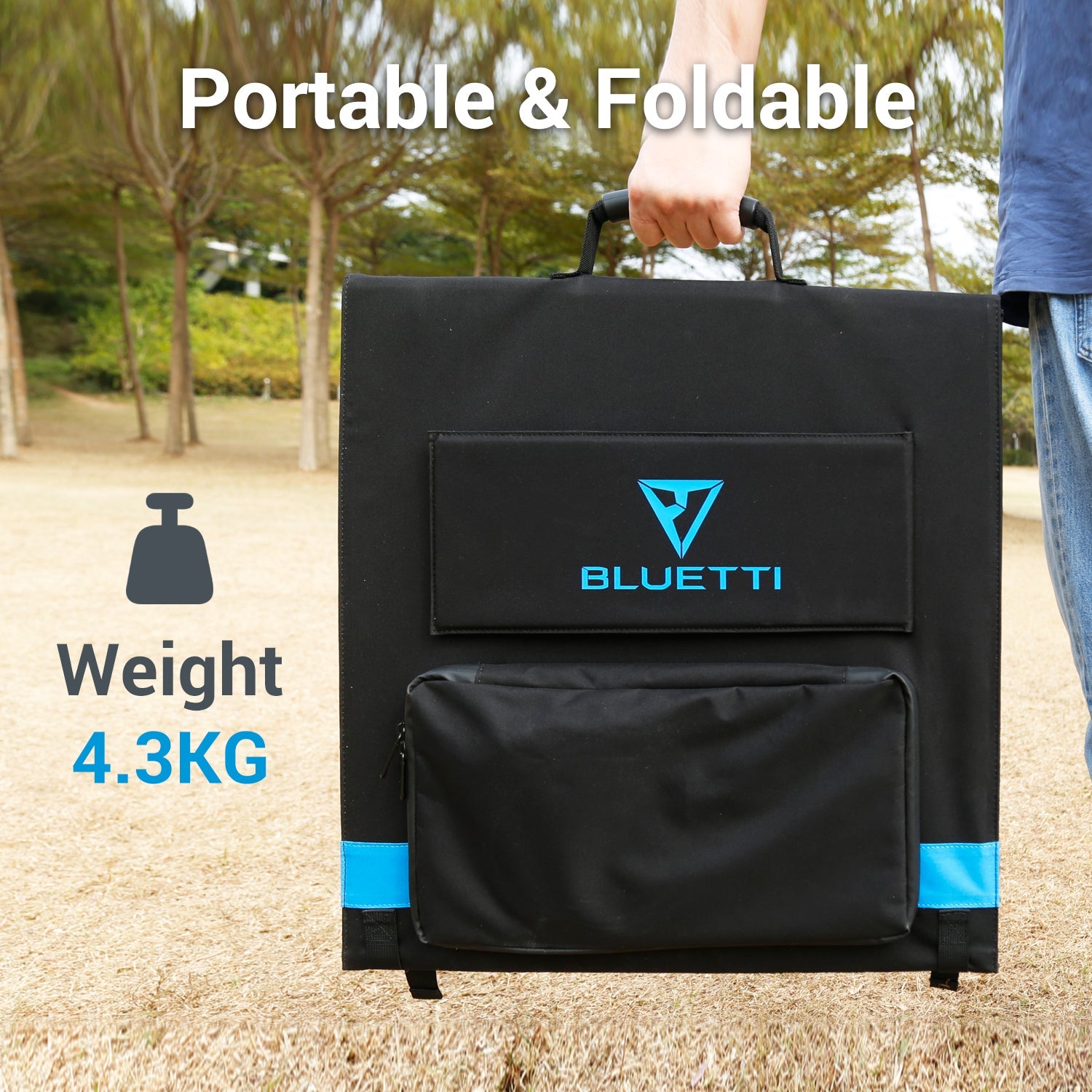

Weight:4.3kg/9.48lb
-
Tips:
-
The charging time are affected by many factors: such as the light intensity and the panel's angle put on the ground. 120w is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angel of the light illuminating the solar panel also changes with the rotation of the sun.
-
It can't be blocked by any object when you use it. Whether it is partial or all. Otherwise, it will affect the conversion efficiency of the solar panel. Click To Download Bluetti 120W Solar Panel User Guide
